MEDESA
WEB-
MASTER
CUBE II
Precision for Success – Your Partner in Innovation and Technology
Our die-cutting machines set new standards in terms of performance and efficiency. As a flagship of high performance in precision die-cutting, our systems are designed to meet even the most demanding production requirements.
Whether flat, formed, deep-drawn, perforated, pre-punched, or embossed foil cuts – our machines process a wide variety of materials with exceptional accuracy and speed. With the implementation of the latest technologies and an unwavering focus on innovation and flexibility, our machines provide a future-proof solution, all within a compact footprint.

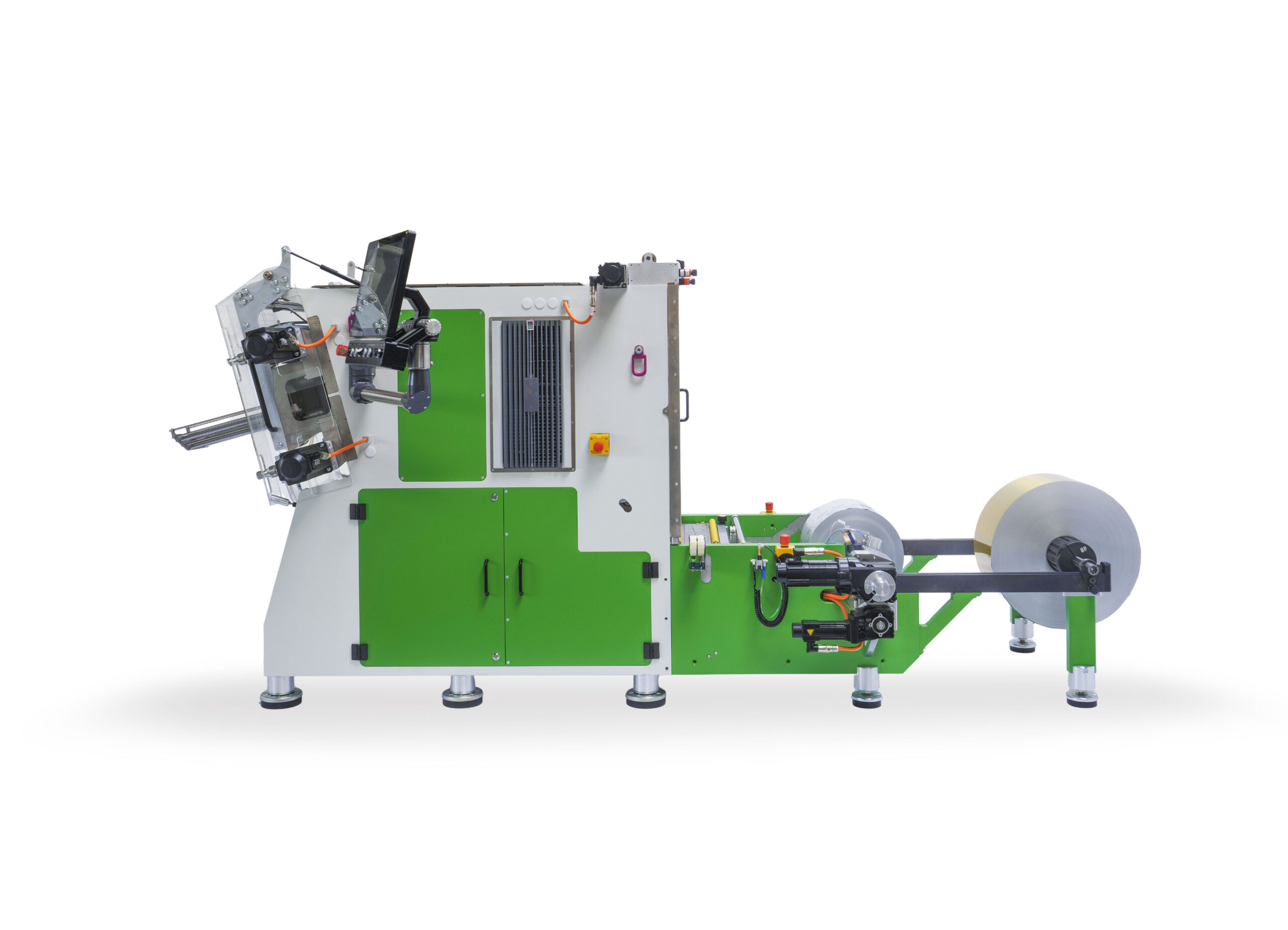

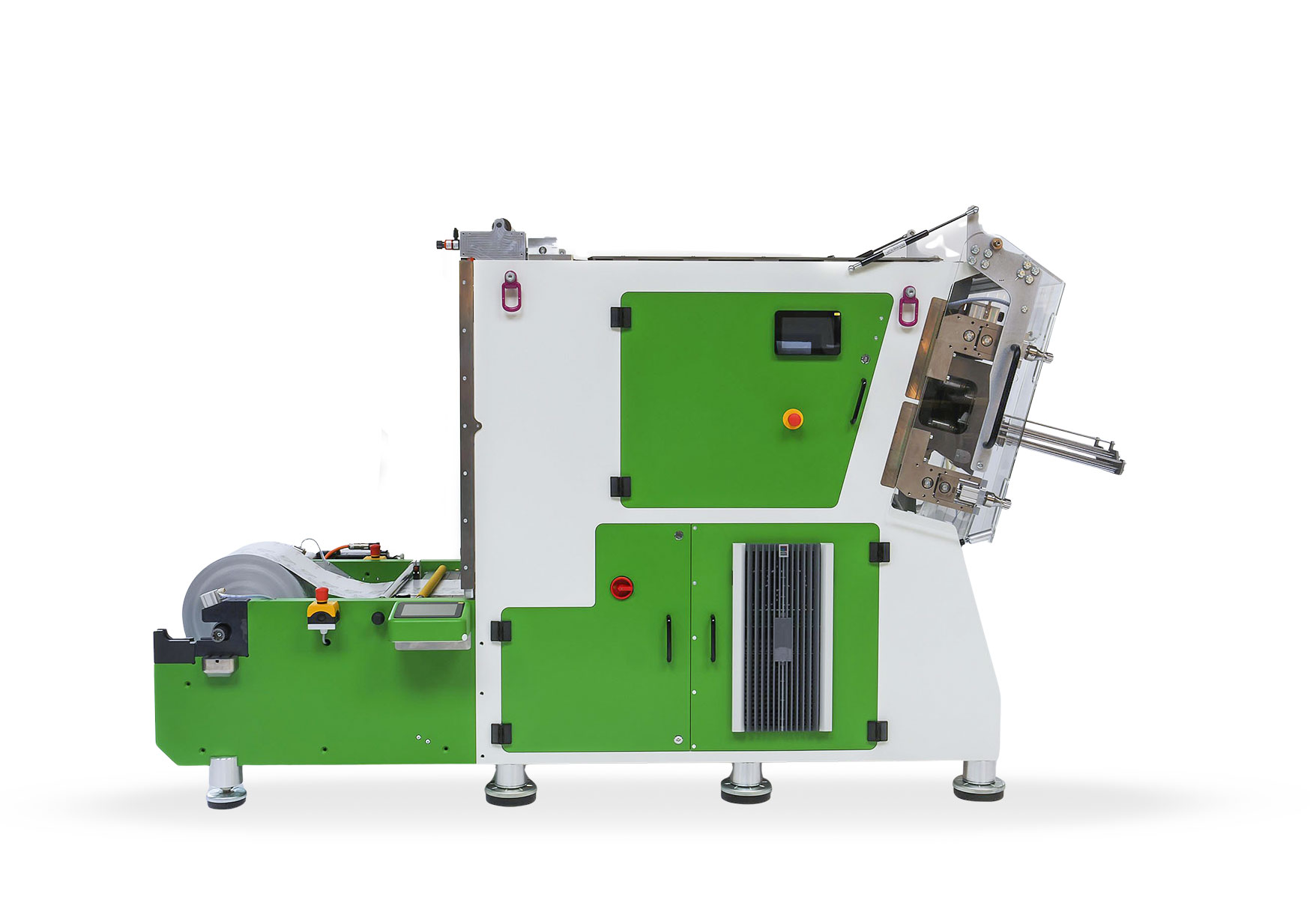

The latest model, CUBE II, is an evolution of the CUBE series, featuring highlights such as a Linux-based, intuitive, and modern user interface. Its 1-cable technology streamlines the machines operation, while the newest generation of servo motors underpins its power. All these advancements enable an impressive cycle rate of up to 500 strokes per minute (with 75.5mm lids, 4 cavities, aluminum foil).
MEDESA
WEBMASTER
CUBE II
- Foil width options: 320 / 380 / 500 / 560 mm
- Intuitive and modern user interface based on LINUX with a 21.5-inch touchscreen
- 2 additional control terminals with 7-inch screens
- Precise positioning of the foil during die-cutting via program parameters
- Self-explanatory parameter descriptions through plain text display and pictorial icons
- Foil feed and pull controlled by 2 freely programmable servo axes
- State-of-the-art dancer roller control
- Air-conditioned electronics compartment
- Reversible foil unwinding side
- Speed up to approximately 500 cycles/min (with 75.5 mm lids, 4-cavities, aluminum foil)
- Reduced power consumption due to the latest generation of servo motors
Various options
complete the overall concept and ensure
optimal efficiency

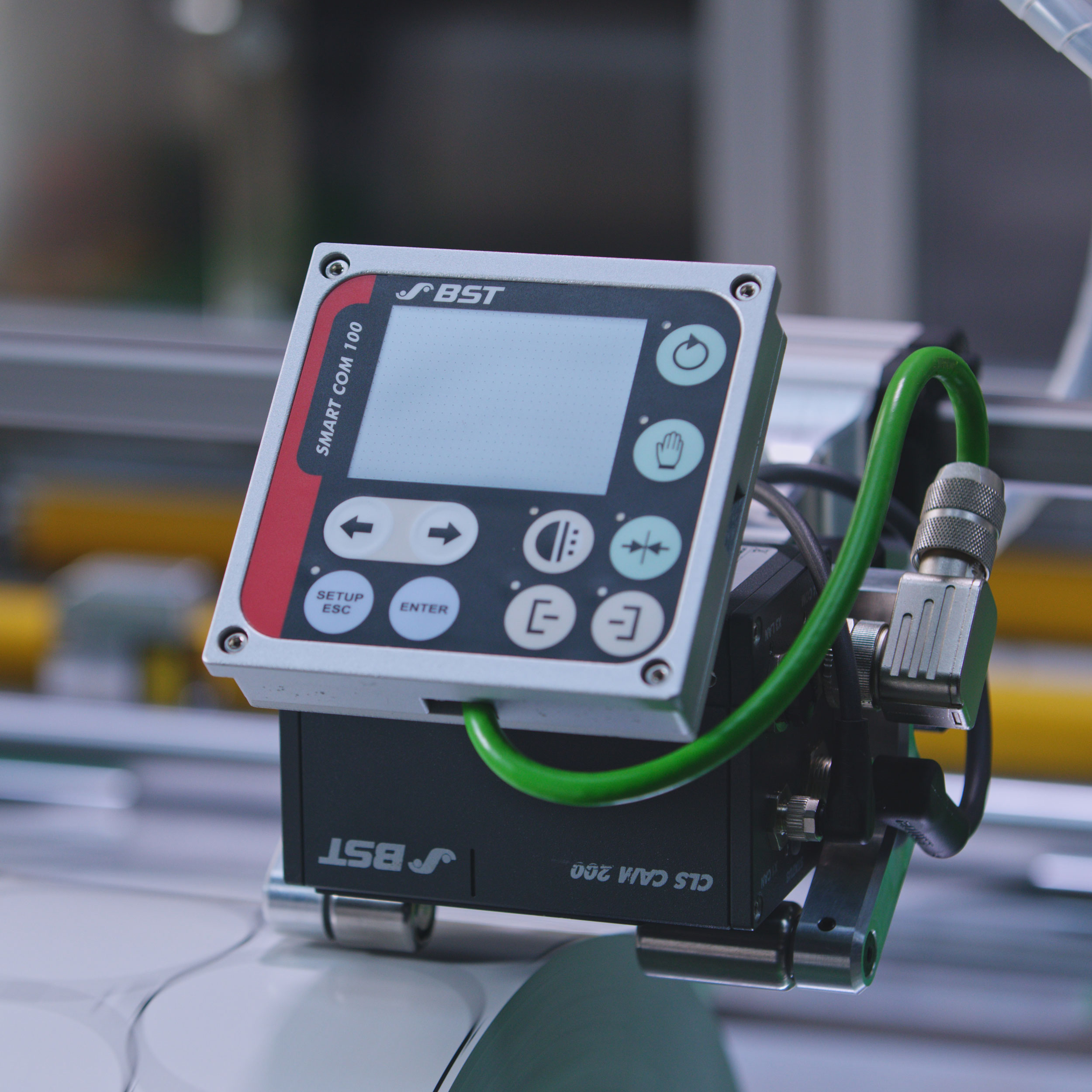

- Automatic web guide
Ensures exact foil alignment at all times, delivering flawless die-cutting results and maximum production reliability.
- 200% inspection system SMARTSCAN
by Erhardt+ Leimer. Detects printing defects and holes in the material to ensure consistent product quality.
- Various swivel arms
Engineered to support tools from all major manufacturers, ensuring seamless integration of already-in-stock-tools.

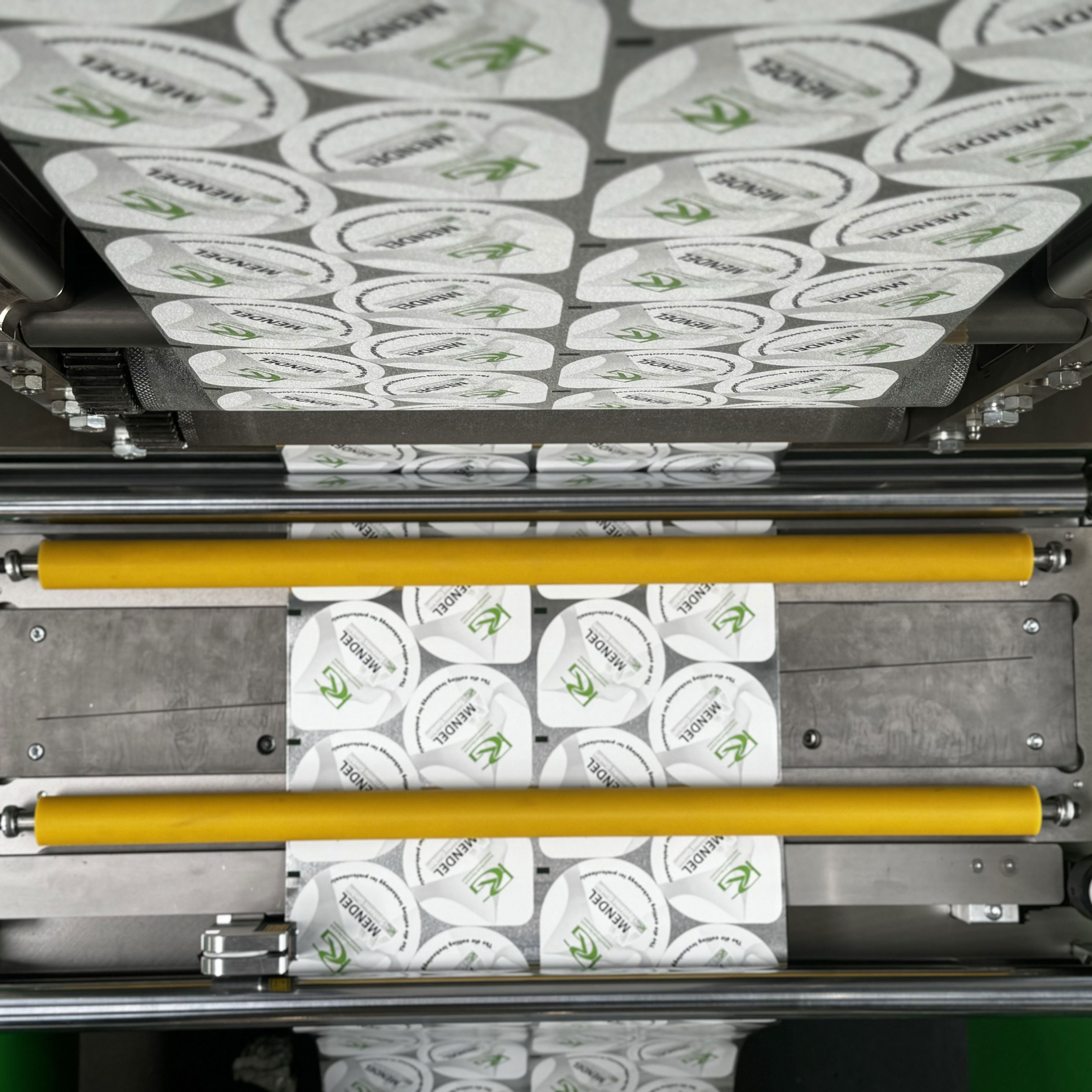

- Splice table
Ensures fast, precise, and clean reel changes with minimal downtime. 180° rotary function- allows quick and safe replacement of the embossing unit.
- Tooling width options
320 / 380 / 500 / 560 mm
Covering all common printing widths
- Access via APP/WIFI
Our expert technicians provide real-time online support to ensure rapid troubleshooting, reduced downtime, and maximum cost efficiency.

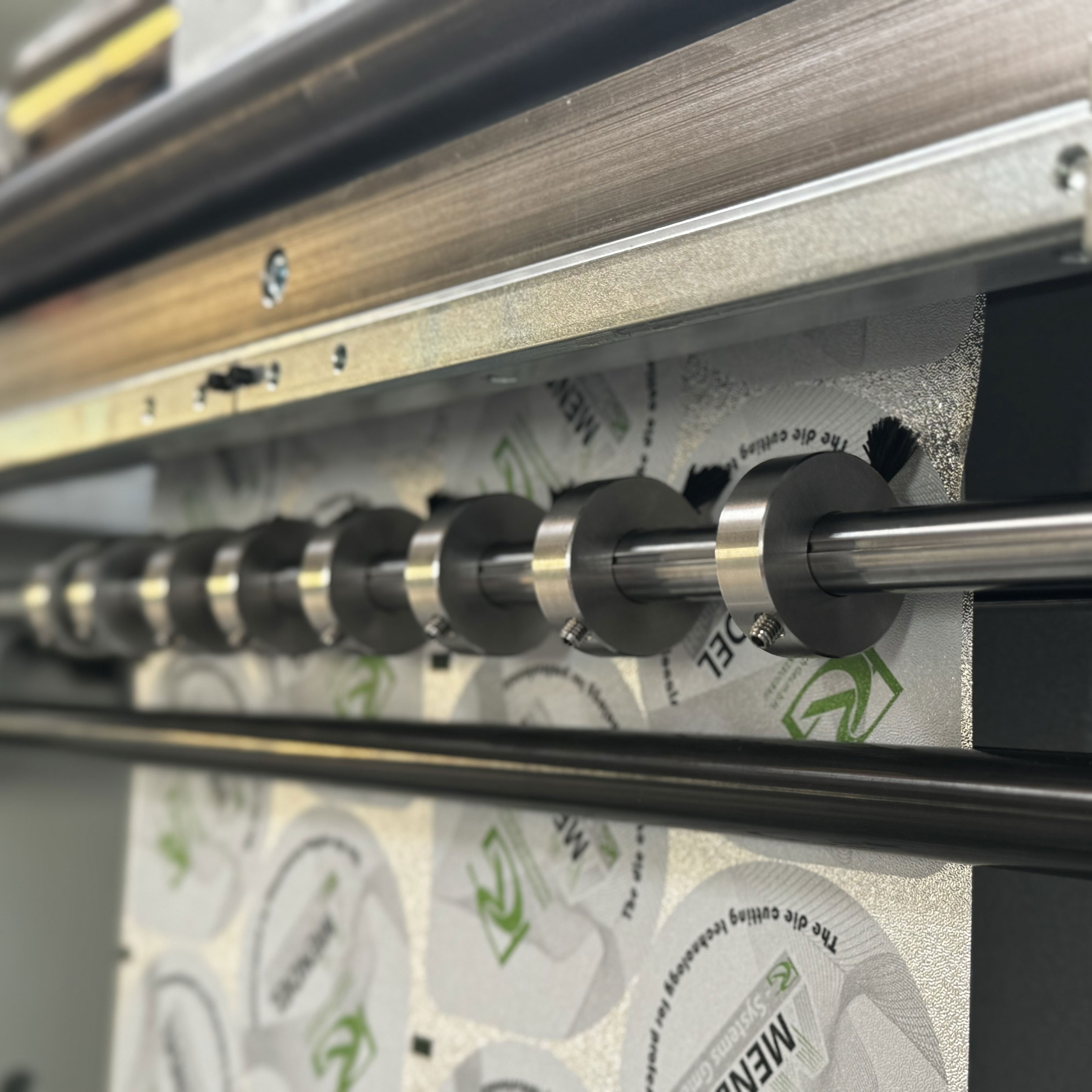

- Adjustable lacquer detector
Continuously monitors coating consistency on aluminum foil and triggers an immediate machine stop to protect product quality and reduce waste.
- Most flexible machine on the market
Ultra-fast tool and embosser changeover enables efficient processing and frequent job changes.

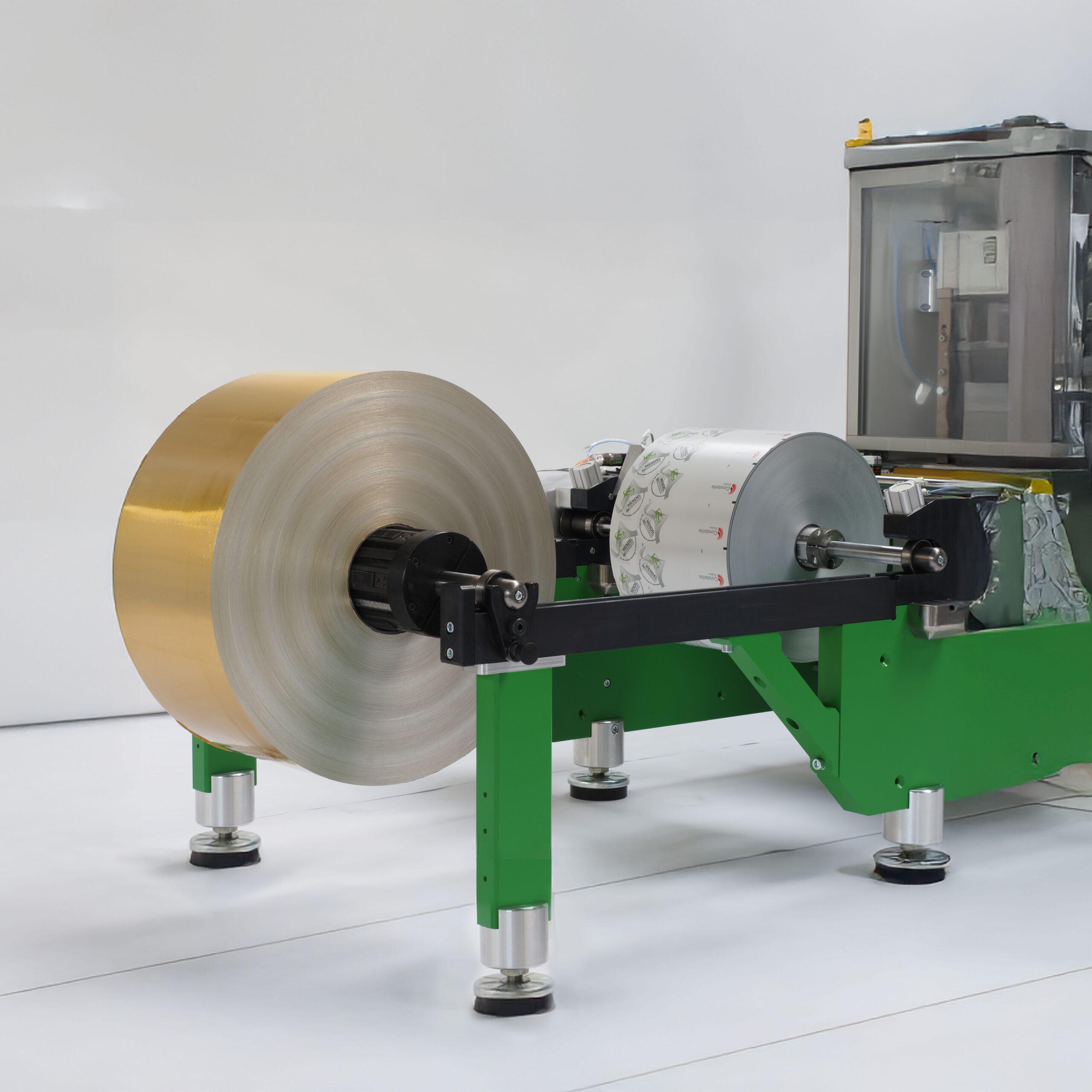

- Unwind extension for reel storing
Designed to allow quicker reel replacement and minimize machine standstill time.
Various options
complete the overall concept and ensure
optimal efficiency
- Automatic web guide
- 200% inspection system SMARTSCAN
- Splice table
- Various swivel arms
- Tooling width options
320 / 380 / 500 / 560 mm
Covering all common printing widths
- Access via APP/WIFI
- Most flexible machine on the market
- Adjustable lacquer detector
Continuously monitors coating consistency on aluminum foil and triggers an immediate machine stop to protect product quality and reduce waste.
- Unwind extension for reel storing
Various options
complete the overall concept and ensure
optimal efficiency
- Automatic web guide
Ensures exact foil alignment at all times, delivering flawless die-cutting results and maximum production reliability.
- 200% inspection system SMARTSCAN
by Erhardt+ Leimer. Detects printing defects and holes in the material to ensure consistent product quality.
- Splice table
Ensures fast, precise, and clean reel changes with minimal downtime. 180° rotary function- allows quick and safe replacement of the embossing unit.
- Various swivel arms
Engineered to support tools from all major manufacturers, ensuring seamless integration of already-in-stock-tools.
- Tooling width options
320 / 380 / 500 / 560 mm
Covering all common printing widths
- Access via APP/WIFI
Our expert technicians provide real-time online support to ensure rapid troubleshooting, reduced downtime, and maximum cost efficiency.
- Most flexible machine on the market
Ultra-fast tool and embosser changeover enables efficient processing and frequent job changes.
- Adjustable lacquer detector
Continuously monitors coating consistency on aluminum foil and triggers an immediate machine stop to protect product quality and reduce waste.
- Unwind extension for reel storing
Designed to allow quicker reel replacement and minimize machine standstill time.
Cuttings
of all kinds
- Available with engraved, laser-engraved, or rubber embossing rollers
- Paired with sheer unlimited embossing design possibilities and powered by state- of-the-art servo motor technology, the CUBE II achieves exceptional production speeds while guaranteeing highest product quality.

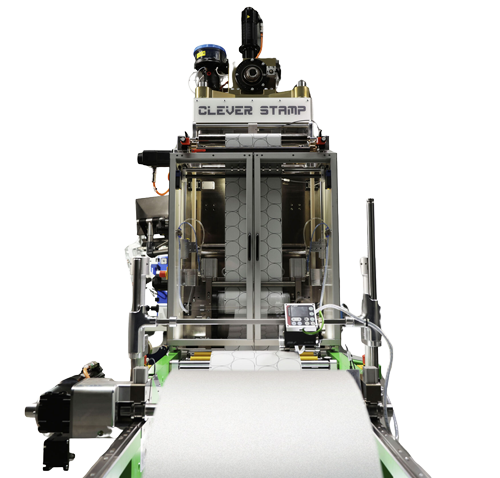

CLEVER
STAMP®
- Partial stamping
- Stamping of logos
- Writing in braille
- Can be used for all existing tools
- Partial stamping
From decorative rim embossing patterns such as worms, arrows, waves, or dots to customized logo embossing, the Clever Stamp System provides creative possibilities tailored exactly to your customer’s vision.
- CLEVER STAMP System

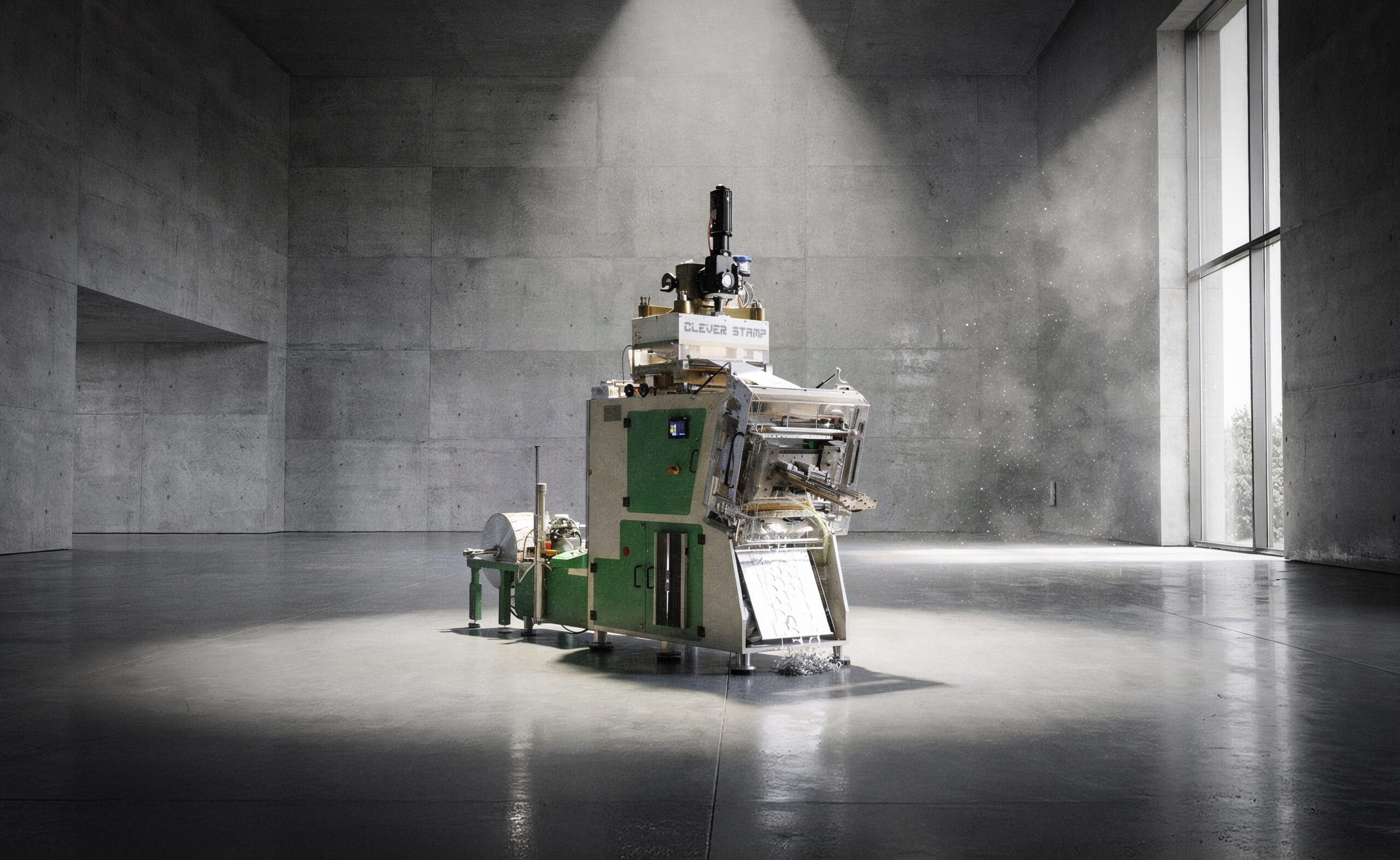

The CUBE II is future-ready:
possibility to add the Clever Stamp at any time, with all
necessary integrations already built into its design.
Service
Service Portal
Our service is just one click away: software updates, service tickets, data sheets and training materials
Remote Support
Our technicians provide remote support for problem analysis and defining suitable solutions.
Service / Maintenance
We provide compatible maintenance and service schedules for our machines and support you with applying them if required.
Spare Parts
Quick and efficient supply of spare parts on an international scale ensure the work flow in your production.
Training
Trainings online as well as face to face – customized for your requirements – guarantee the safe handling of your machine and all available options.
Technical data
Dimensions: 2,697 x 1,363 x 1,788 m
Weight: ~ 2000 kg
Power requirements: U = 3×400–480V/AC + 2xPE,
50–60Hz, I = 32 A, P = 2,4 kW
Power consumption
(450 spm, 75,5 mm lid, 6 up):
With CS: 2,4 kW
Without CS: 1,5 kW
Nominal current wire feed fuse: 32A NH (gG)
Compressed air supply: 5–7 Bar
Grounding: Min. 16 mm²
Foil:
Max. width: 560 mm
Max. thickness: Al 120 mic, paper or film 250 mic
Roll, max diameter: 800 mm
